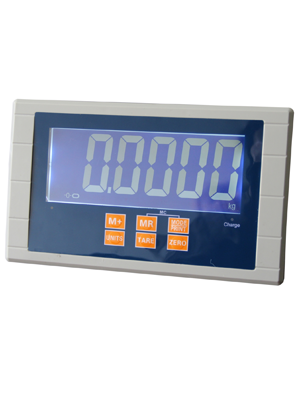

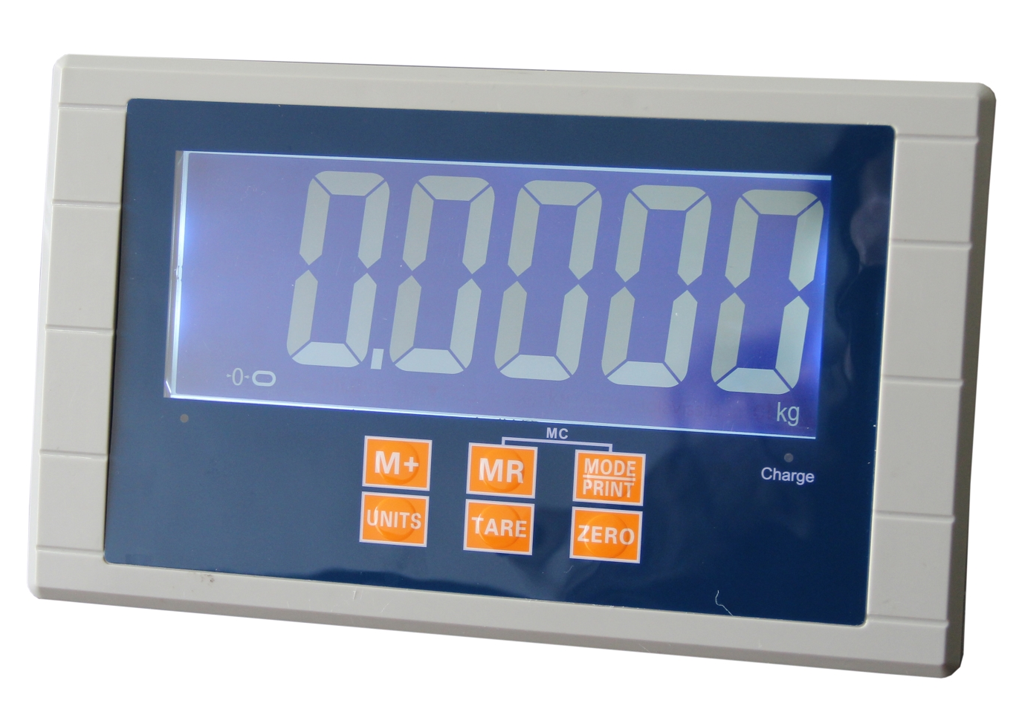

Đầu cân IND-FWC

Liên hệ

Model

IND-FWE

Display

6 bits 1.8" height LCD digit

Capacity

6-800000kg

Verified counts

30000

A/D conversion method

∑—△

A/D conversion speed

8 times/sec

Max. A/D conversion bits

20

Input signal range

-20mV~20mV

Input sensitivity

≥0.02 μ V/e

Load cell excitation

DC 5V: 1 ≤ 150mA

Max. connection number of load cell

8 at 350 ohm

Load cell connection mode

4 wire, auto compensation for long distance ≤ 10 meters

Temperature

0°C to +40°C / +32°F to +104°F

Power supply

AC 12V/500mA ; DC inside rechargeable 6V/4AH battery

Calibration

Manual calibration

Calibration weight

1%-100% Cap.

Appearance

ABS

Scale size(w x d x h)

260x156x65mm

Net weight

1.2kg
