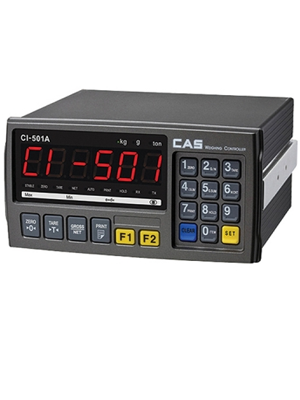

Bộ chỉ thị CI-501A CAS

Model		CI-501A	CI-502A		CI-505A	CI507A
Loadcell applied voltage		DC 10V
Max Loadcell Connection		8 ea (350 Ω)
Zero point calibration Range		-0.6mV ~ 42mV
Input Sensitivity		0.5µV/D
Internal degradability		1/520.000
External  degradability		1/10.000
A/D Conversion speed		200 times/second
Display		6-digit LED
Power		AC 110 ~ 250V, 50/60Hz
Temperature used		-100C ~ 400C
External input		4
External output		–		6
Product Size (mm)		195 x 189 x 98 ( W x D x H)
Product Weight (kg)		Approx 1.8
IP Class		IP 65			IP 65
Communication	Basic Spec	RS-232C, Current loop, printer Port
	Option	Analog out (V-out: 0 ~ 10V, I-out: 4-20mA) BCD in/ out RS-422, RS 485
