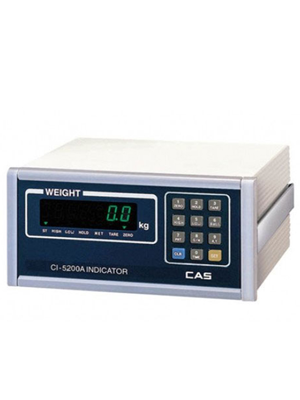

Bộ hiển thị cân CI5200A

Bộ hiển thị cân CI5200A

Liên hệ

Model CI-5010A CI-5200A CI-5500A
Loadcell applied voltage DC 10V
Max Loadcell Connection 8 ea (350 Ω)
Zero point calibration Range -0.6mV ~ 42mV
Input Sensitivity 0.5µV/D
Internal degradability 1/200.000
External  degradability 1/10.000
A/D Conversion speed 50 times/second
Display 6-digit VFD 12-digit VFD
Power AC 110 ~ 250V, 50/60Hz
Temperature used -100C ~ 400C
External input 4
External output – 6
Product Size (mm) 195 x 192 x 98 ( W x D x H)
Product Weight (kg) Approx 1.8
IP Class IP 65 IP 65
Communication Basic Spec RS-232C, Current loop, printer Port
Option Analog out (V-out: 0 ~ 10V, I-out: 4-20mA) BCD in/ out RS-422, RS 485
