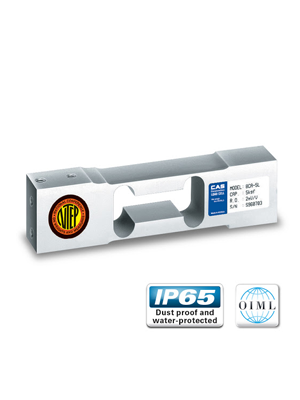

Cảm biến tải BCA CAS (5, 10, 15, 20, 30, 50, 75, 100KG)

LOADCELL BCA CAS

Liên hệ

Product Characteristics

OIML C3 Approved (OIML R60)

NTEP III 5.000 approved (handbook 44)

Off center compensated (OIML R76)

Ex ia IIC T4 approved

Easy installation

Desighed according to IP 65

0919.79.17.27

Product Characteristics

OIML C3 Approved (OIML R60)

NTEP III 5.000 approved (handbook 44)

Off center compensated (OIML R76)

Ex ia IIC T4 approved

Easy installation

Desighed according to IP 65

Model		BCA
Rated Capacity (kgf)		5, 10, 15, 20, 30, 50, 75, 100
Accuracy Class		D3	C3
Combined Error (% R.O)		≤ 0.03	≤ 0.02
Creep for 30 min (% R.O)		≤ 0.03	≤ 0.017
Excitation	Recommended (V)	10
	Maximum (V)	15
Compensated Temperature Range (0C)		-10 ~ +40
Operating Temperature Range (0C)		-20 ~ +70
Material & plate		Anodized Aluminum
